  1. For a NPN bipolar transistor, what is the main stream of current in the base region?

    2. A.
    Drift of holes
    B.
    Diffusion of holes
    C.
    Drift of electrons
    D.
    Diffusion of electrons

    View Answer

    Workspace

    Discuss Discuss in Forum

  2. Assertion (A): A VMOS can handle much larger current than other field effect transistors.

    Reason (R): In a VMOS the conducting channel is very narrow.

    3. A.
    Both A and R are true and R is correct explanation of A
    B.
    Both A and R are true but R is not a correct explanation of A
    C.
    A is true but R is false
    D.
    A is false but R is true

    View Answer

    Workspace

    Discuss Discuss in Forum

  3. In monolithic ICs, all the components are fabricated by

    4. A.
    diffusion process
    B.
    oxidation
    C.
    evaporation
    D.
    none

    View Answer

    Workspace

    Discuss Discuss in Forum

  4. Which one of the following is not a characteristic of a ferroelectric material?

    5. A.
    High dielectric constant
    B.
    No hysteresis
    C.
    Ferroelectric characteristic only above the curie point
    D.
    Electric dipole moment

    View Answer

    Workspace

    Discuss Discuss in Forum

  5. In case of photo conductor for germanium when forbidden energy gap is 0.72 eV, the critical wavelength for intrinsic excitation will be

    6. A.
    1.43 m
    B.
    1.43 mm
    C.
    1.73 mm
    D.
    1.73 x 1012 m

    View Answer

    Workspace

    Discuss Discuss in Forum

  6. In the sale of diamonds the unit of weight is carat. One carat is equal to

    7. A.
    100 mg
    B.
    150 mg
    C.
    200 mg
    D.
    500 mg

    View Answer

    Workspace

    Discuss Discuss in Forum

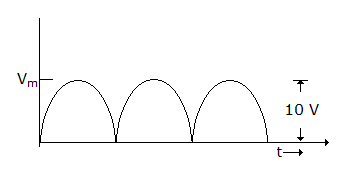

  7. R.M.S. value of the waveform shown will be

    8. A.
    3.53 V
    B.
    1 V
    C.
    7.07 V
    D.
    8.56 V

    View Answer

    Workspace

    Discuss Discuss in Forum

  8. The effect of current shunt feedback in an amplifier is to

    9. A.
    increase the I/P resistance and decrease the O/P resistance
    B.
    increase both I/P and O/P resistance
    C.
    decrease both I/P and O/P resistance
    D.
    decrease the I/P resistance and increase O/P resistance

    View Answer

    Workspace

    Discuss Discuss in Forum

  9. Assertion (A): A JFET can be used as a current source.

    Reason (R): In beyond pinch off region the current in JFET is nearly constant.

    10. A.
    Both A and R are true and R is correct explanation of A
    B.
    Both A and R are true but R is not a correct explanation of A
    C.
    A is true but R is false
    D.
    A is false but R is true

    View Answer

    Workspace

    Discuss Discuss in Forum

  10. Permalloy is

    11. A.
    a variety of stainless steel
    B.
    a polymer
    C.
    a conon-ferrous alloy used in aircraft industry
    D.
    a nickel an iron alloy having high permeability

    View Answer

    Workspace

    Discuss Discuss in Forum
