  1. DC amplifiers have a tendency to be unstable.

  2. A.
    True
    B.
    False

  3. A half wave diode rectifier has a capacitance input filter. If input voltage is Vm sin ωt, PIV is

  4. A.
    Vm
    B.
    2 Vm
    C.
    3 Vm
    D.
    4 Vm

  5. An amplifier with loop gain Aβ will be more stable for value of Aβ as

  6. A.
    0.95
    B.
    0.7
    C.
    1.2
    D.
    1.5

  7. Study the circuit of figure and examine the following statements

    1. It is an active low pass finer.
    2. It is a second order filter.
    3. The change in gain is 40 dB/decade.
    Which of the above statements are correct?

  8. A.
    1, 2 and 3
    B.
    1 and 2
    C.
    1 and 3
    D.
    2 and 3

  9. In a circuit of figure, Vs = 10 cos(ωt) power drawn by the 2Ω resistor is 4 watts. The power factor is

  10. A.
    0.3
    B.
    0.4
    C.
    0.6
    D.
    none

  11. The quiescent collector current IC, and collector to emitter voltage VCE in a CE connection are the values when

  12. A.
    ac signal is zero
    B.
    ac signal is low
    C.
    ac signal is negative
    D.
    either (a) or (b)

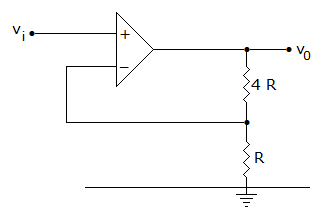

  13. In the op-amp circuit of figure, V0 =

  14. A.
    Vi
    B.
    3 Vi
    C.
    5 Vi
    D.
    0.5 Vi

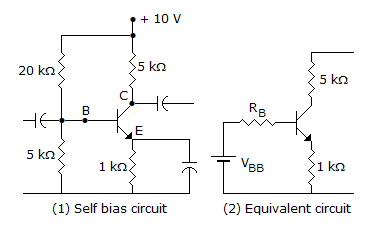

  15. Figure shows the self bias circuit for CE amplifier and its equivalent circuit. VBB and RB respectively are

  16. A.
    10 V and 4 k ohm
    B.
    5 V and 4 k ohm
    C.
    2 V and 4 k ohm
    D.
    2 V and 10 k ohm
