  1. The realization of a reactance function gives

    2. A.
    a network having inductances only
    B.
    a network having capacitances only
    C.
    a network having resistances only
    D.
    a network having inductances and capacitances only

    View Answer

    Workspace

    Discuss Discuss in Forum

  2. The correct relation between energy and charge is

    3. A.
    Energy = voltage/charge
    B.
    Charge = Energy x voltage
    C.
    Energy = voltage (charge)0.5
    D.
    Energy = voltage x charge

    View Answer

    Workspace

    Discuss Discuss in Forum

  3. A two branch parallel tuned circuits has a coil of resistance R and inductance L in one branch and capacitance C in the second branch. The bandwidth is 200 radians/sec. A load of resistance RL is connected in parallel. The new bandwidth will be

    4. A.
    200 rad/sec
    B.
    more than 200 rad/sec
    C.
    less than 200 rad/sec
    D.
    200 rad/sec or less

    View Answer

    Workspace

    Discuss Discuss in Forum

  4. The correct relation between joules and calories is

    5. A.
    calories = joules/4.156
    B.
    joules = calories/4.156
    C.
    calories = joules x 107/4.156
    D.
    joules = calories x 107/4.156

    View Answer

    Workspace

    Discuss Discuss in Forum

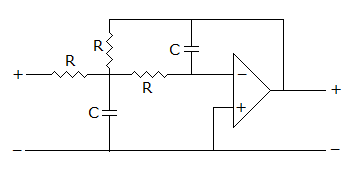

  5. The filter in figure, uses ideal op-amp. It is

    6. A.
    low pass filter
    B.
    high pass filter
    C.
    band pass filter
    D.
    band stop filter

    View Answer

    Workspace

    Discuss Discuss in Forum

  6. For a rectified sinusoidal wave clipped at 0.707 its peak value (figure), the average value is

    7. A.
    70.7 V
    B.
    63.7 V
    C.
    54 V
    D.
    15 V

    View Answer

    Workspace

    Discuss Discuss in Forum

  7. A voltage v = 100 sin (100 pt + 45°) V is applied to an impedance 10 + j10 ohm. The current is

    8. A.
    10 ∠45° A
    B.
    7.07 ∠45° A
    C.
    5 ∠45° A
    D.
    5 ∠0 A

    View Answer

    Workspace

    Discuss Discuss in Forum
