  1. The relation AD - BC = 1 where A, B, C, D are transmission parameters of a network is valid for

    2. A.
    every network
    B.
    passive but not reciprocal network
    C.
    passive and reciprocal network
    D.
    both active and passive networks

    View Answer

    Workspace

    Discuss Discuss in Forum

  2. In figure the phase plot

    3. A.
    will be 90° at ω = 0 and 0° at ω = ∞
    B.
    will be 0° at ω = 0 and 90° at ω = ∞
    C.
    will be 45° at ω = 0 and 0° at ω = ∞
    D.
    will be 45° at ω = 0 and 90° at ω = ∞

    View Answer

    Workspace

    Discuss Discuss in Forum

  3. The graph of a network is shown in the figure. Which one of the figure shown is not a tree of the graph?

    4. View Answer

    Workspace

    Discuss Discuss in Forum

  4. A network N is dual of network N if

    5. A.
    both of them have same mesh equation
    B.
    both of them have same node equation
    C.
    mesh equation of one are the node equations of the other
    D.
    KCL and KVL equations are the same

    View Answer

    Workspace

    Discuss Discuss in Forum

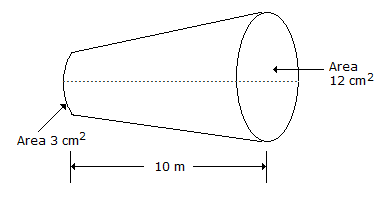

  5. The resistance of the aluminium conductor (r = 2.83 x 10-8 Ωm) in figure is

    6. A.
    0.001 Ω
    B.
    less than 0.001 Ω
    C.
    more than 0.001 Ω
    D.
    more than 0.002 Ω

    View Answer

    Workspace

    Discuss Discuss in Forum

  6. In a Hurwitz polynomial

    7. A.
    all coefficients are non-negative
    B.
    the coefficients may be positive or negative
    C.
    all coefficients are negative
    D.
    all coefficients are non-negative and all zeros should be either in left half plane or simple on the imaginary axis

    View Answer

    Workspace

    Discuss Discuss in Forum

  7. For an RC admittance function

    8. A.
    all poles and zeros are simple
    B.
    all poles and zeros are simple and lie on negative real axis
    C.
    all poles and zeros lie on imaginary axis
    D.
    all poles and zeros lie on positive real axis

    View Answer

    Workspace

    Discuss Discuss in Forum

  8. If resistance is 20 Ω and inductance is 2 H in a R-L series circuit, then time constant of this will be

    9. A.
    0.001 s
    B.
    0.1 s
    C.
    10 s
    D.
    100 s

    View Answer

    Workspace

    Discuss Discuss in Forum

  9. The following table gives some Laplace transforms and the functions

    f(t)   F(s)
    1.δ(t)   s
    2. u(t)   1/s
    3. tu(t)   2/s2
    4. t2u(t)   2s3
    Of these the correctly matched pairs are

    10. A.
    2 and 4
    B.
    1 and 4
    C.
    2 and 4
    D.
    1 and 2

    View Answer

    Workspace

    Discuss Discuss in Forum

  10. In series as well as parallel resonant circuits, increasing the value of resistance would lead to

    11. A.
    decrease in bandwidth of both the circuits
    B.
    increase in bandwidth of both the circuits
    C.
    decrease in bandwidth in series circuit and increase in parallel circuit
    D.
    increase in bandwidth in series circuit and decrease in parallel circuit

    View Answer

    Workspace

    Discuss Discuss in Forum
