A stepper motor is

a two phase induction motor

is a kind of rotating amplifier

is an electromagnetic transducer used to convert an angular position of shaft into electrical signal

is an electromechanical device which actuates a train of step angular movements in response to a train of input pulses on one to one basis

Whatsapp
Facebook
Copy
Copy Text
Copy
Copy URL

In a two phase ac servomotor rotor resistance is R and rotor reactance is X. The speed curve will be linear if

X² = R

Whatsapp
Facebook
Copy
Copy Text
Copy
Copy URL

In the given figure, the input frequency is such that R = X_C. Then

v₀ lags v_i by 45°

v₀ lags v_i by 90°

v₀ leads v_i by 45°

v₀ leads v_i by 90°

Whatsapp
Facebook
Copy
Copy Text
Copy
Copy URL

From the noise point of view, bandwidth should

be large

not be too large

should be as large as possible

should be infinite

Whatsapp
Facebook
Copy
Copy Text
Copy
Copy URL

First column elements of Routh's tabulation are 3, 5, , 2. It means that there

is one root in left half s plane

are two roots in left half s plane

are two roots in right half s plane

is one root in right half s plane

Whatsapp
Facebook
Copy
Copy Text
Copy
Copy URL

When a unit step voltage drives a lag network the output

remains constant at unit step value

increases exponentially from zero to final value

decreases exponentially from 1 to 0

either (b) of (c) depending on values of R and C

Whatsapp
Facebook
Copy
Copy Text
Copy
Copy URL

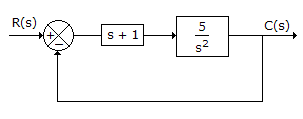

For the given figure C(s)/R(s)

Whatsapp
Facebook
Copy
Copy Text
Copy
Copy URL

For the circuit in the given figure,

Whatsapp
Facebook
Copy
Copy Text
Copy
Copy URL

A system has its two poles on the negative real axis and one pair of poles lies on jω axis. The system is

stable

unstable

limitedly stable

either (a) or (c)
