  1. Assertion (A): Two terminal black boxes of R and C can be identified by plotting their static V-I characteristics.

    Reason (R): The V-I characteristic of resistance is a straight line of slope R passing through origin.

    2. A.
    Both A and R are true and R is correct explanation of A
    B.
    Both A and R are true and R is not the correct explanation of A
    C.
    A is true but R is false
    D.
    A is false but R is true

    View Answer

    Workspace

    Discuss Discuss in Forum

  2. In figure, VAB =

    3. A.
    6 V
    B.
    10 V
    C.
    25 V
    D.
    40 V

    View Answer

    Workspace

    Discuss Discuss in Forum

  3. In figure, the effective resistance across AB is

    4. A.
    R
    B.
    R - 1
    C.
    R/2
    D.

    View Answer

    Workspace

    Discuss Discuss in Forum

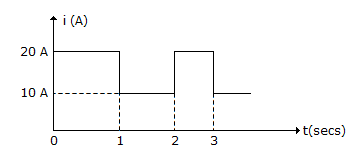

  4. For the wave shown in figure, the average value is

    5. A.
    14.14 A
    B.
    15 A
    C.
    17.17 A
    D.
    19.19 A

    View Answer

    Workspace

    Discuss Discuss in Forum

  5. The dc voltage applied to an R-L series circuit is suddenly changed from V1 to V2. The expression for transient current is

    6. A.
    B.
    C.
    D.
    either (a) or (c)

    View Answer

    Workspace

    Discuss Discuss in Forum

  6. One ampere means the flow of

    7. A.
    One coulomb each minute
    B.
    One electron per second
    C.
    One coulomb per second
    D.
    One coulomb each hour

    View Answer

    Workspace

    Discuss Discuss in Forum

  7. For the following circuit a source of V1(t) = e-2t is applied, then the resulting response V2(t) is given by

    8. A.
    e-2t + e-t
    B.
    e-t
    C.
    e-t - e-2t
    D.

    View Answer

    Workspace

    Discuss Discuss in Forum

  8. When R and C are connected in parallel, phase angle of Y is positive.

    9. A.
    True
    B.
    False

    View Answer

    Workspace

    Discuss Discuss in Forum
