ECE :: Network Analysis and Synthesis
-
Three resistance of 15 Ω each are connected in delta. The resistance of equivalent star will have a value of
-

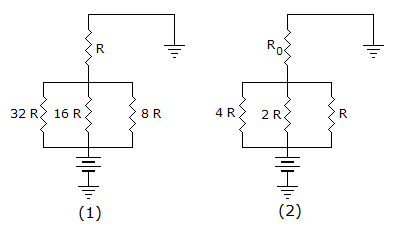

The circuit in figure(1) is replaced by that in figure(2). It remains same R0 will be
-
In the circuit of figure the current through 5 Ω resistance at t = 0+ is
-
A parallel plate capacitor with air as dielectric has a capacitance C. If the dielectric has a dielectric constant ∈r and the remaining dimensions are the same, the capacitance will be
-
Assertion (A): When excited by a unit step voltage, an inductor behaves as open circuit at t = 0.
Reason (R): Inductance has the property of inertia.
-
A bulb rated at 60 W, 120 V is used for 30 minutes. The charge associated with this operation is
