  1. A multilevel decoder is more costly as compared to single level decoder.

    2. A.
    True
    B.
    False

    View Answer

    Workspace

    Discuss Discuss in Forum

  2. EPROM can be

    3. A.
    UVPROM
    B.
    EEPROM
    C.
    both UVPROM and EEPROM
    D.
    none of the above

    View Answer

    Workspace

    Discuss Discuss in Forum

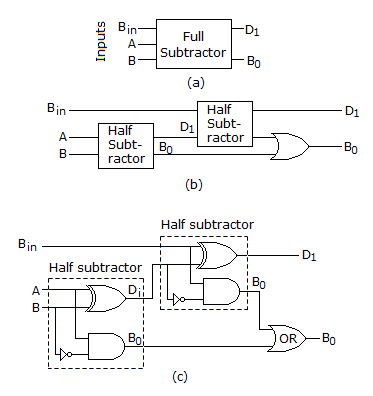

  3. A full subtractor has a total of

    4. A.
    2 inputs
    B.
    3 inputs
    C.
    4 inputs
    D.
    5 inputs

    View Answer

    Workspace

    Discuss Discuss in Forum

  4. The function of interface circuit is

    5. A.
    to match output conditions of driver with input conditions of load device
    B.
    to match output conditions of load device with input conditions of driver
    C.
    both (a) and (b)
    D.
    neither (a) nor (b)

    View Answer

    Workspace

    Discuss Discuss in Forum

  5. 127416 - 3A716 = __________ .

    6. A.
    ACA16
    B.
    ACB16
    C.
    ECD16
    D.
    AAA16

    View Answer

    Workspace

    Discuss Discuss in Forum

  6. With four Boolean variables, how many Boolean expressions can be performed?

    7. A.
    16
    B.
    256
    C.
    1024 (1 K)
    D.
    64K (64 x 1024)

    View Answer

    Workspace

    Discuss Discuss in Forum

  7. A + (B . C) =

    8. A.
    A . B + C
    B.
    A . B + A . C
    C.
    A
    D.
    (A + B) . (A + C)

    View Answer

    Workspace

    Discuss Discuss in Forum

  8. To count 1000 bottles in a milk plant, the minimum number of flip flops requires is

    9. A.
    12
    B.
    10
    C.
    8
    D.
    6

    View Answer

    Workspace

    Discuss Discuss in Forum

  9. Decimal 8 in excess-3 code =

    10. A.
    1000
    B.
    1001
    C.
    1011
    D.
    1111

    View Answer

    Workspace

    Discuss Discuss in Forum

  10. The inputs to a 3 bit binary adder are 1112 and 1102. The output will be

    11. A.
    101
    B.
    1101
    C.
    1111
    D.
    1110

    View Answer

    Workspace

    Discuss Discuss in Forum
