  1. Assertion (A): A demultiplexer can be used as a decoder.

    Reason (R): A demultiplexer can be built by using AND gates only.

    2. A.
    Both A and R are correct and R is correct explanation of A
    B.
    Both A and R are correct but R is not correct explanation of A
    C.
    A is true, R is false
    D.
    A is false, R is true

    View Answer

    Workspace

    Discuss Discuss in Forum

  2. Assertion (A): The output of a NOR gate is equal to the complement of OR of input variables.

    Reason (R): A XOR gate is a universal gate.

    3. A.
    Both A and R are correct and R is correct explanation of A
    B.
    Both A and R are correct but R is not correct explanation of A
    C.
    A is true, R is false
    D.
    A is false, R is true

    View Answer

    Workspace

    Discuss Discuss in Forum

  3. The number of bits in ASCII is

    4. A.
    12
    B.
    10
    C.
    9
    D.
    7

    View Answer

    Workspace

    Discuss Discuss in Forum

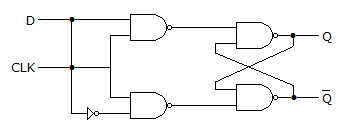

  4. In a D latch

    5. A.
    data bit D is fed to S input and D to R input
    B.
    data bit D is fed to R input and D to S input
    C.
    data bit D is fed to both R and S inputs
    D.
    data bit D is not fed to any input

    View Answer

    Workspace

    Discuss Discuss in Forum

  5. A 4 : 1 multiplexer requires __________ data select line.

    6. A.
    1
    B.
    2
    C.
    3
    D.
    4

    View Answer

    Workspace

    Discuss Discuss in Forum

  6. The number of unused states in a 4 bit Johnson counter is

    7. A.
    2
    B.
    4
    C.
    8
    D.
    12

    View Answer

    Workspace

    Discuss Discuss in Forum

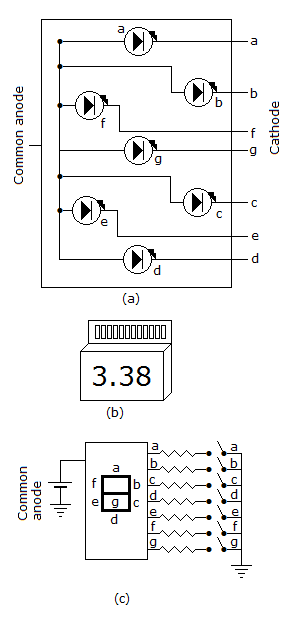

  7. It is desired to display the digit 7 using a seven segment display. The LEDs to be turned on are

    8. A.
    a, b, c
    B.
    b, c, d
    C.
    c, d, e
    D.
    a, b, d

    View Answer

    Workspace

    Discuss Discuss in Forum

  8. For a MOD-12 counter, the FF has a tpd = 60 ns The NAND gate has a tpd of 25 n sec. The clock frequency is

    9. A.
    3.774 MHz
    B.
    > 3.774 MHz
    C.
    < 3.774 MHz
    D.
    4.167 MHz

    View Answer

    Workspace

    Discuss Discuss in Forum

  9. 1001012 is equal to decimal number

    10. A.
    47
    B.
    37
    C.
    21
    D.
    17

    View Answer

    Workspace

    Discuss Discuss in Forum

  10. A Karnaugh map with 4 variables has

    11. A.
    2 cells
    B.
    4 cells
    C.
    8 cells
    D.
    16 cells

    View Answer

    Workspace

    Discuss Discuss in Forum
