  1. Parallel wire transmission line is an example of

    2. A.
    lumped network
    B.
    distributed
    C.
    depend upon I/P signal strength
    D.
    power I/P

    View Answer

    Workspace

    Discuss Discuss in Forum

  2. A 2-terminal network consists of one of the RLC elements. The elements is connected to an ac supply. The current through the element is 1 A. When an inductor is inserted in series between the source and the element, the current through the element becomes 2 A. What is this element?

    3. A.
    A resistor
    B.
    An inductor
    C.
    A capacitor
    D.
    Cannot be single element

    View Answer

    Workspace

    Discuss Discuss in Forum

  3. In figure, . The values of C and R are

    4. View Answer

    Workspace

    Discuss Discuss in Forum

  4. Consider the following statements for a driving point function F(jω):

    1. Re F(jω) is an even function of ω and is 0 or positive for all values of ω.
    2. Im F(jω) is an even function of ω and is 0 or positive for all values of ω.
    3. Re F(jω) is an odd function of ω and is 0 or negative for all values of ω.
    4. Re F(s) = 0 for Re s = 0.
    Which one of the statements given above is/are correct?

    5. A.
    1 only
    B.
    1 and 4
    C.
    2, 2 and 4
    D.
    4 only

    View Answer

    Workspace

    Discuss Discuss in Forum

  5. Which of following is linear and bilateral parameter?

    6. A.
    Resistors
    B.
    Semi conductor diodes
    C.
    Electron tubes
    D.
    Transistor

    View Answer

    Workspace

    Discuss Discuss in Forum

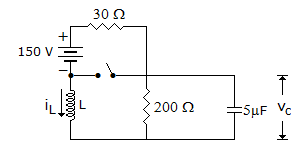

  6. In figure, the switch is initially open. At t = 0 switch is closed. vc (0+) and iL (0+) are

    7. A.
    60 V and - 0.3 A
    B.
    150 V and zero
    C.
    zero and 0.3 A
    D.
    90 V and - 0.3 A

    View Answer

    Workspace

    Discuss Discuss in Forum

  7. Which of the following statements is incorrect?

    8. A.
    Ideal voltage source is one whose internal resistance is zero
    B.
    Ideal voltage source is one whose internal conductance is zero
    C.
    Ideal voltage source is one whose generated voltage is equal to the available terminal voltage
    D.
    Ideal current source is one whose internal conductance is zero

    View Answer

    Workspace

    Discuss Discuss in Forum

  8. If the peak value of output of a half wave rectifier is 100 V, the rms value is

    9. A.
    100 V
    B.
    50 V
    C.
    70.7 V
    D.
    35.35 V

    View Answer

    Workspace

    Discuss Discuss in Forum

  9. Assertion (A): is not an LC function.

    Reason (R): The highest powers of numerator and denominator do not differ by 1.

    10. A.
    Both A and R are true and R is correct explanation of A
    B.
    Both A and R are true and R is not the correct explanation of A
    C.
    A is true but R is false
    D.
    A is false but R is true

    View Answer

    Workspace

    Discuss Discuss in Forum

  10. For a flexible cable, most suitable insulation is

    11. A.
    magnesium oxide
    B.
    glass fibre
    C.
    insulating tape
    D.
    polyvinyl chloride

    View Answer

    Workspace

    Discuss Discuss in Forum
