  1. Double integration of unit step function leads to

    2. A.
    an impulse
    B.
    a parabola
    C.
    a ramp
    D.
    a doublet

    View Answer

    Workspace

    Discuss Discuss in Forum

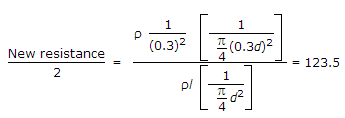

  2. A conductor has a cylindrical shape with a diameter d. Its resistance is 2 Ω. It is recast into a cylindrical conductor of diameter 0.3d. The resistance of new conductor is likely to be

    3. A.
    less than 2 Ω
    B.
    less than 0.6 Ω
    C.
    between 2 and 100 Ω
    D.
    more than 100 Ω

    View Answer

    Workspace

    Discuss Discuss in Forum

  3. One commercial unit of energy is equal to

    4. A.
    1 watt-sec
    B.
    1 kilowatt-sec
    C.
    1 kilowatt-hour
    D.
    One watt-hour

    View Answer

    Workspace

    Discuss Discuss in Forum

  4. In figure which is correct at any time t

    5. A.
    I = iR + iL
    B.
    I = iR + iL iC
    C.
    I = iR + iL - iC
    D.
    I = iR - iL - iC

    View Answer

    Workspace

    Discuss Discuss in Forum

  5. Two coupled coils with self inductances of 4 mH and 16 mH are connected in series. The maximum possible value of inductance can be

    6. A.
    36 mH
    B.
    20 mH
    C.
    28 mH
    D.
    64 mH

    View Answer

    Workspace

    Discuss Discuss in Forum

  6. In using KCL it is necessary that current leaving a node is written as negative.

    7. A.
    True
    B.
    False

    View Answer

    Workspace

    Discuss Discuss in Forum

  7. A resistor is rated at 0.75 watt, 1 kΩ. Its current rating is

    8. A.
    1 mA
    B.
    27.386 mA
    C.
    1.268 mA
    D.
    5.393 mA

    View Answer

    Workspace

    Discuss Discuss in Forum
