  1. Wave A = 100 sin ωt and wave B = 100 cos ωt. Then

    2. A.
    rms values of the two waves are equal
    B.
    rms values of A is more than that of B
    C.
    rms values of A is less than that of B
    D.
    rms values of the two waves may or may not be equal

    View Answer

    Workspace

    Discuss Discuss in Forum

  2. Z(c) for the network shown in the figure is The value of C and R are, respectively

    3. A.
    1/6 F and 4 Ω
    B.
    2/9 F and 9/2 Ω
    C.
    2/3 F and 1/2 Ω
    D.
    1/2 F and 1 Ω

    View Answer

    Workspace

    Discuss Discuss in Forum

  3. Two networks are cascaded through an ideal buffer. If td1 and td2 are delay times of network, the overall delay time is

    4. A.
    td1 + td2
    B.
    t2d1 + t2d2
    C.
    td1 + td2
    D.

    View Answer

    Workspace

    Discuss Discuss in Forum

  4. A series RC circuit has R = 5 Ω and C = 10 μF. The current in the circuit is 5 sin 20000t. The applied voltage is

    5. A.
    252 sin (20000t + 45°)
    B.
    252 sin (20000t - 45°)
    C.
    252 sin 20000t
    D.
    252 sin (20000t - 90°)

    View Answer

    Workspace

    Discuss Discuss in Forum

  5. A capacitor stores 0.15C at 5 V. Its capacitance is

    6. A.
    0.75 F
    B.
    0.75 μF
    C.
    0.03 F
    D.
    0.03 μF

    View Answer

    Workspace

    Discuss Discuss in Forum

  6. A 0.5 μF capacitor is connected across a 10 V battery. After a long time, the circuit current and voltage across capacitor will be

    7. A.
    0.5 A and 0 V
    B.
    0 A and 10 V
    C.
    20 A and 5 V
    D.
    0.05 A and 5 V

    View Answer

    Workspace

    Discuss Discuss in Forum

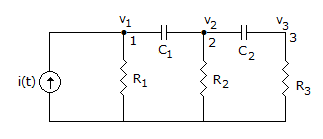

  7. For node 1 in figure, KCL equation is

    8. A.
    B.
    C.
    D.
    none of the above

    View Answer

    Workspace

    Discuss Discuss in Forum

  8. A cable has an insulation resistance of 1010 ohms. If the length is doubled, the insulation resistance will be

    9. A.
    2 x 1010 Ω
    B.
    0.5 x 1010 Ω
    C.
    1010 Ω
    D.
    4 x 1010 Ω

    View Answer

    Workspace

    Discuss Discuss in Forum

  9. , i(t) =

    10. A.
    3e-4t - e-5t
    B.
    3e-4t - 2e-3t
    C.
    2e-4t - 5e-2t
    D.
    3e-4t - e-t

    View Answer

    Workspace

    Discuss Discuss in Forum

  10. In the figure shown, A1, A2, A3 are identical Ammeters. If A1 and A3 read 5 and 13 A respectively, reading of A2 will be

    11. A.
    8
    B.
    13 A
    C.
    18
    D.
    12 A

    View Answer

    Workspace

    Discuss Discuss in Forum
