Home / GATE 2017-2018 / GATE Civil :: Practice Test Paper 1

GATE 2017-2018 :: GATE Civil

  1. Two series of compaction tests were performed in the laboratory on an inorganic clayey soil employing two different levels of compaction energy per unit volume of soil. With regard to the above tests, the following two statements are made.
    I The optimum moisture content is expected to be more for the tests with higher energy.
    II The maximum dry density is expected to be more for the tests with higher energy.
    The CORRECT option evaluating the above statements is
  2. A.
    Only I is TRUE
    B.
    Only II is TRUE
    C.
    Both I and II are TRUE
    D.
    Neither I nor II is TRUE

  3. As per the Indian Standard soil classification system, a sample of silty clay with liquid limit of 40% and plasticity index of 28% is classified as
  4. A.
    CH
    B.
    CI
    C.
    CL
    D.
    CL-ML

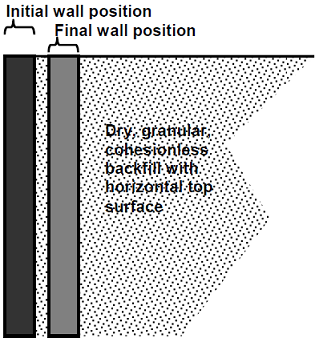

  5. A smooth rigid retaining wall moves as shown in the sketch causing the backfill material to fail. The backfill material is homogeneous and isotropic, and obeys the Mohr-Coulomb failure criterion. The major principal stress is

  6. A.
    parallel to the wall face and acting downwards
    B.
    normal to the wall face
    C.
    oblique to the wall face acting downwards
    D.
    oblique to the wall face acting upwards

  7. An embankment is to be constructed with a granular soil (bulk unit weight = 20 kN/m3) on a saturated clayey silt deposit (undrained shear strength = 25 kPa). Assuming undrained general shear failure and bearing capacity factor of 5.7, the maximum height (in m) of the embankment at the point of failure is
  8. A.
    7.1
    B.
    5.0
    C.
    4.5
    D.
    2.5

  9. A trapezoidal channel is 10.0 m wide at the base and has a side slope of 4 horizontal to 3 vertical. The bed slope is 0.002. The channel is lined with smooth concrete (Manning's n = 0.012). The hydraulic radius (in m) for a depth of flow of 3.0 m is
  10. A.
    20.0
    B.
    3.5
    C.
    3.0
    D.
    2.1

  11. A rectangular open channel of width 5.0 m is carrying a discharge of 100 m3/s. The Froude number of the flow is 0.8. The depth of flow (in m) in the channel is
  12. A.
    4
    B.
    5
    C.
    16
    D.
    20

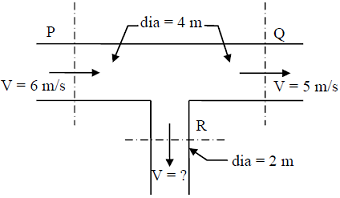

  13. The circular water pipes shown in the sketch are flowing full. The velocity of flow (in m/s) in the branch pipe "R is

  14. A.
    3
    B.
    4
    C.
    5
    D.
    6

  15. The ratio of actual evapo-transpiration to potential evapo-transpiration is in the range
  16. A.
    0.0 to 0.4
    B.
    0.6 to 0.9
    C.
    0.0 to 1.0
    D.
    1.0 to 2.0

  17. A sample of domestic sewage is digested with silver sulphate, sulphuric acid, potassium dichromate and mercuric sulphate in chemical oxygen demand (COD) test. The digested sample is then titrated with standard ferrous ammonium sulphate (FAS) to determine the un-reacted amount of
  18. A.
    mercuric sulphate
    B.
    potassium dichromate
    C.
    silver sulphate
    D.
    sulphuric acid

  19. Assertion [a]: At a manhole, the crown of the outgoing sewer should not be higher than the crown of the incoming sewer.
    Reason [r]: Transition from a larger diameter incoming sewer to a smaller diameter outgoing sewer at a manhole should not be made.
    The CORRECT option evaluating the above statements is :
  20. A.
    Both [a]
    B.
    Both [a]
    C.
    Both [a]
    D.
    [a]
