  1. The Y plates of a CRO are excited by a voltage 2 sin 100 t and the X plates are not connected. The display would be

    2. A.
    a vertical line
    B.
    a horizontal line
    C.
    sine wave
    D.
    slant line

    View Answer

    Workspace

    Discuss Discuss in Forum

  2. Heating effect of current is used in

    3. A.
    ammeters
    B.
    voltmeters
    C.
    both ammeters and voltmeters
    D.
    wattmeters

    View Answer

    Workspace

    Discuss Discuss in Forum

  3. The coils of Drysdale polar potentiometer are wound non-inductively.

    4. A.
    True
    B.
    False

    View Answer

    Workspace

    Discuss Discuss in Forum

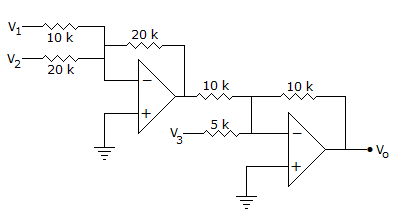

  4. In figure the output V0 is

    5. A.
    2V1 + V2 - 2V3
    B.
    2(V1 + V2) - V3
    C.
    V1 + V2 + V3
    D.
    V1 + 2V2 - V3

    View Answer

    Workspace

    Discuss Discuss in Forum

  5. Magnetic effect of current is used in

    6. A.
    ammeters
    B.
    voltmeters
    C.
    wattmeters
    D.
    ammeters, voltmeters, wattmeters and energy meters

    View Answer

    Workspace

    Discuss Discuss in Forum

  6. Which of these instruments is dynamometers type?

    7. A.
    Wattmeter
    B.
    Power factor meter
    C.
    Frequency meter
    D.
    Both (a) and (b)

    View Answer

    Workspace

    Discuss Discuss in Forum

  7. The instrument used to check insulation of household wiring is

    8. A.
    megger
    B.
    ohmmeter
    C.
    multimeter
    D.
    high resistance voltmeter

    View Answer

    Workspace

    Discuss Discuss in Forum

  8. Watthour meter is an integrating instrument

    9. A.
    True
    B.
    False

    View Answer

    Workspace

    Discuss Discuss in Forum

  9. An ammeter is

    10. A.
    secondary instrument
    B.
    absolute instrument
    C.
    recording instrument
    D.
    integrating instrument

    View Answer

    Workspace

    Discuss Discuss in Forum

  10. It is required to measure temperature in the range of 1300-1520°C. The most suitable thermocouple is

    11. A.
    chromel constantan
    B.
    iron constantan
    C.
    chromel aluminium
    D.
    platinum-rhodium

    View Answer

    Workspace

    Discuss Discuss in Forum
