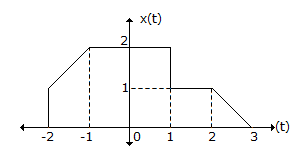

  1. Signal x(t) is shown below:

    The values of `t' for which x(3t - 2) will be zero are:

    2. A.
    0,
    B.
    C.
    D.

    View Answer

    Workspace

    Discuss Discuss in Forum

  2. Costa's receiver is used for

    3. A.
    Coherent detection of AM-SC signal
    B.
    Asynchronous detection of AM-SC signal
    C.
    Coherent detection of DSB-SC signal
    D.
    Asynchronous detection of DSB-SC signal

    View Answer

    Workspace

    Discuss Discuss in Forum

  3. The maximum concentration of the element which can be dissolved in solid silicon at a given temperature is termed as

    4. A.
    Solid solubility
    B.
    Dissolution coefficient
    C.
    Solidification index
    D.
    Concentration index

    View Answer

    Workspace

    Discuss Discuss in Forum

  4. What is the purpose of DMA facility in microprocessor based system?

    5. A.
    To increase the speed of data transfer between the mP and the I/O devices
    B.
    To increase the speed of data transfer between the mP and the memory
    C.
    To increase the speed of data transfer between the memory and the I/O devices
    D.
    To improve the reliability of the system

    View Answer

    Workspace

    Discuss Discuss in Forum

  5. The fuse material used in electrical lines must have which one of the following properties?

    6. A.
    High resistivity
    B.
    Low conductivity
    C.
    High melting point
    D.
    Low melting point

    View Answer

    Workspace

    Discuss Discuss in Forum

  6. With respect to transmission parameters, which one of the following is correct?

    7. A.
    A and B are dimensionless
    B.
    B and C are dimensionless
    C.
    A and D are dimensionless
    D.
    B and D are dimensionless

    View Answer

    Workspace

    Discuss Discuss in Forum

  7. For detecting a sequence 1011 which is the correct state diagram representation.

    8. A.
    B.
    C.
    D.
    none of these

    View Answer

    Workspace

    Discuss Discuss in Forum

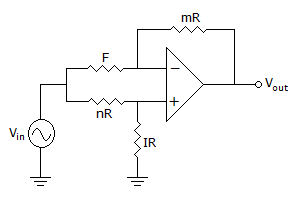

  8. In the circuit, shown in figure, V0 = Vi. The values of 1, m, n are: (x represents don't care conditions)

    9. A.
    0, 1, 1
    B.
    ∞, x, x
    C.
    x, ∞, x
    D.
    0, x, ∞

    View Answer

    Workspace

    Discuss Discuss in Forum

  9. In the design of a single mode step index optical fiber close to upper cut-off, the single mode operations is NOT preserved if

    10. A.
    radius as well as operating wavelength are halved
    B.
    radius as well as operating wavelength are doubled
    C.
    radius is halved and operating wavelength is doubled
    D.
    radius is doubled and operating wavelength is halved

    View Answer

    Workspace

    Discuss Discuss in Forum

  10. For a message signal m(t) = cos (2pfmt) and the carrier frequency fc, which of the following represents a single side band (SSB) signal?

    11. A.
    cos (2pfmt) cos (2pfct)
    B.
    cos (2pfct)
    C.
    cos [2p(fc + fm) t]
    D.
    [1 + cos (2pfmt) cos (2pfct)]

    View Answer

    Workspace

    Discuss Discuss in Forum
