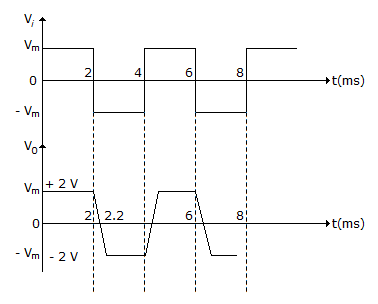

For the waveform shown below, the slew rate and full power bandwidth with respect to op-amp will be respectively
-
In the derivation of expression for peak percent overshoot,
, Which one the following conditions is NOT required? -
In the following circuit , the comparator output in log: "I" if V1 > V2 and is logic "0" otherwise. The D/A conversion is done as per the relations VDAC =
2n-2 Volts, where b3 (MSB), b2, b1 and b0 (LSB) are the counter outputs. The counter starts from the clear state
The magnitude of the error between VDAC and Vin at steady state in volts is -

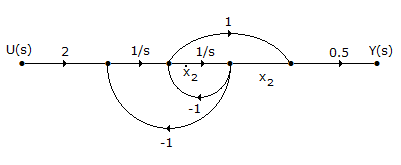

The signal flow graph of a system is shown below:
The state variable representation of the system can be -
Consider the resonant circuit as shown below
The circuit is scaled modified so that Zmax 104 and ωo = 108 Radians. Find the required element values -
Consider the z-transform X(z) = 5z2 + 4z-1 + 3; 0 < |z| < ∞ The inverse transform x[n] is
-
In a JK flip-flop, J is connected to Q and K is connected to Q outputs. The JK FF converts into a
-
A point charge of 6 μC is located at the origin, uniform line charge density of 180 nC/m of 8 m length lies along the x axis and a uniform sheet of charge equal to 25 nC/m2 of area p x 42 lies in the z = 0 plane. Calculate total electric flux leaving the surface of sphere of 4 m radius centered at origin.
-
An infinite ladder is constructed with 1 Ω and 2 Ω resistors as shown below. Find i
