Home / GATE 2017-2018 / GATE Metallurgical :: Practice Test Paper 1

GATE 2017-2018 :: GATE Metallurgical

GATE Metallurgical - Practice Test Paper 1
GATE Metallurgical - Practice Test Paper 2
  1. Fracture stress for a brittle material having a crack length of 1 μm is 200 MPa. Fracture stress for the same material having a crack length of 4 μm is
    2. A.
    200 MPa
    B.
    150 MPa
    C.
    100 MPa
    D.
    50 MPa

    View Answer

    Workspace

    Discuss Discuss in Forum

  2. The flow stress  of an alloy varies with strain rate  MPa. When the alloy is hot extruded from 10 cm diameter to 5 cm diameter at a speed of 2 cm/s, the flow stress is
    3. A.
    1000 MPa
    B.
    105 MPa
    C.
    150 MPa
    D.
    1050 MPa

    View Answer

    Workspace

    Discuss Discuss in Forum

  3. Determine the correctness or otherwise of the following Assertion (a) and Reason (r).
    Assertion : During rolling, front tension and (or) back tension are (is) employed to decrease rolling load.
    Reason : Roll pressure decreases due to lowering of flow stress as a result of front tension/back tension.
    4. A.
    a
    B.
    a
    C.
    a
    D.
    a

    View Answer

    Workspace

    Discuss Discuss in Forum

  4. Match the defects listed in Group I with the processes listed in Group II
    Group I                      Group II
    P. Cold shut             1. Rolling
    Q. Earing                  2. Forging
    R. Alligatoring         3. Deep drawing
    S. Shrinkage porosity  4. Fusion welding
    5. A.
    P-2, Q-4, R-1, S-4
    B.
    P-2, Q-4, R-3, S-1
    C.
    P-2, Q-3, R-1, S-4
    D.
    P-4, Q-1, R-2, S-3

    View Answer

    Workspace

    Discuss Discuss in Forum

  5. A steel ball (density ρsteel = 7200 kg/m3) is placed in an upward moving liquid Al (density ρAl = 2360 kg/m3, viscosity μAl = 1 * 10“3 Pa.s and Reynolds number = 5 * 105). The force (F) exerted on the steel ball is expressed as
    F = f π R2(ρAl v2/2)
    where, f is friction factor (=0.2), v is the velocity of liquid Al and R is the radius of steel ball.
    The force exerted on the steel ball is
    6. A.
    8.32 N
    B.
    6.70 N
    C.
    1.67 N
    D.
    0.52 N

    View Answer

    Workspace

    Discuss Discuss in Forum

  6. A steel ball (density ρsteel = 7200 kg/m3) is placed in an upward moving liquid Al (density ρAl = 2360 kg/m3, viscosity μAl = 1 * 10“3 Pa.s and Reynolds number = 5 * 105). The force (F) exerted on the steel ball is expressed as
    F = f π R2(ρAl v2/2)
    where, f is friction factor (=0.2), v is the velocity of liquid Al and R is the radius of steel ball.
    The terminal velocity of a fine spherical steel particle having diameter dp, in μm range, if allowed to fall in a quiescent liquid Al bath, is
    7. A.
    5.2 * 106 dp2
    B.
    2.6 * 106 dp2
    C.
    1.3 * 106 dp2
    D.
    6.6 * 105 dp2

    View Answer

    Workspace

    Discuss Discuss in Forum

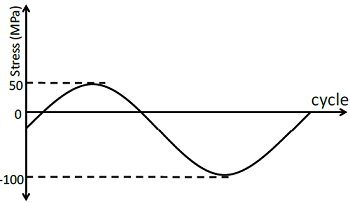

  7. For the above stress cycle
    Stress ratio is
    8. A.
    4
    B.
    2
    C.
    -2
    D.
    -4

    View Answer

    Workspace

    Discuss Discuss in Forum


  8. For the above stress cycle
    Amplitude ratio is
    9. A.
    3
    B.
    1/3
    C.
    -1/3
    D.
    -3

    View Answer

    Workspace

    Discuss Discuss in Forum

  9. A material with grain size of ASTM No. 6 has a lattice frictional stress 100 MN/m2 and locking parameter (Hall-Petch constant) 0.10 MN/m3/2
    Grain size of the material is approximately
    10. A.
    45 μm
    B.
    35 μm
    C.
    4.5 μm
    D.
    3.5 μm

    View Answer

    Workspace

    Discuss Discuss in Forum

  10. A material with grain size of ASTM No. 6 has a lattice frictional stress 100 MN/m2 and locking parameter (Hall-Petch constant) 0.10 MN/m3/2
    Yield strength of the material is approximately
    11. A.
    100 MPa
    B.
    115 MPa
    C.
    165 MPa
    D.
    215 MPa

    View Answer

    Workspace

    Discuss Discuss in Forum
