  1. A cavity resonator is

    2. A.
    a hollow metallic enclosure
    B.
    a hollow enclosure having magnetic material as its walls
    C.
    a hollow enclosure having dielectric material as its walls
    D.
    either (b) or (c)

    View Answer

    Workspace

    Discuss Discuss in Forum

  2. If antenna diameter is increased four times, the maximum range is increased by a factor of

    3. A.
    2
    B.
    2
    C.
    4
    D.
    0.2

    View Answer

    Workspace

    Discuss Discuss in Forum

  3. Assertion (A): Gunn diode is a transferred electron device.

    Reason (R): A Gunn oscillator uses the phenomenon of transferred electron effect.

    4. A.
    Both A and R are correct and R is correct explanation of A
    B.
    Both A and R are correct but R is not correct explanation of A
    C.
    A is correct but R is wrong
    D.
    A is wrong but R is correct

    View Answer

    Workspace

    Discuss Discuss in Forum

  4. Atomic and molecular resonance is observed in many substances

    5. A.
    at microwave frequencies
    B.
    at low frequencies
    C.
    at frequencies used in AM broadcast
    D.
    at both (b) and (c)

    View Answer

    Workspace

    Discuss Discuss in Forum

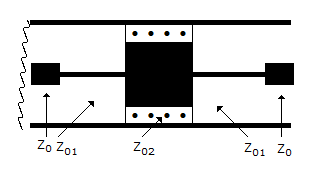

  5. The component in the given figure is

    6. A.
    attenuator
    B.
    T type low pass filter
    C.
    T type high pass filter
    D.
    phase shifter

    View Answer

    Workspace

    Discuss Discuss in Forum

  6. The semiconductor diode which can be used in switching circuit in microwave range is

    7. A.
    PIN diode
    B.
    Varactor diode
    C.
    Tunnel diode
    D.
    Gunn diode

    View Answer

    Workspace

    Discuss Discuss in Forum

  7. In the given figure the reflected current wave after first reflection is

    8. A.
    0.18 A
    B.
    -0.18 A
    C.
    0.3 A
    D.
    -0.3 A

    View Answer

    Workspace

    Discuss Discuss in Forum

  8. A line has an attenuation of 0.054 Np/m. The attenuation in decibels is

    9. A.
    4.7 dB/m
    B.
    0.47 dB/m
    C.
    0.54 dB/m
    D.
    5.4 dB/m

    View Answer

    Workspace

    Discuss Discuss in Forum

  9. If a line is open circuited Zin = Z0 tanh (gl).

    10. A.
    True
    B.
    False

    View Answer

    Workspace

    Discuss Discuss in Forum

  10. A reflex klystron oscillator uses

    11. A.
    one cavity resonator
    B.
    two cavity resonators
    C.
    three cavity resonators
    D.
    none of the above

    View Answer

    Workspace

    Discuss Discuss in Forum
