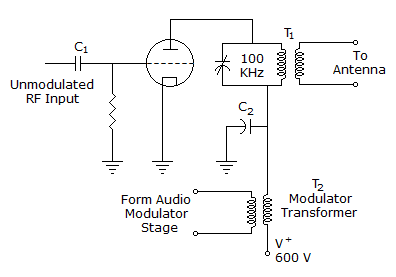

  1. What is the RF amplifier plate voltage when the audio-modulating voltage is +600 V?

    2. A.
    -600 V
    B.
    Zero
    C.
    600 V
    D.
    1200 V

    View Answer

    Workspace

    Discuss Discuss in Forum

  2. FM has

    3. A.
    two sidebands only
    B.
    four sidebands only
    C.
    eight sidebands only
    D.
    infinite sidebands

    View Answer

    Workspace

    Discuss Discuss in Forum

  3. The service area of a TV transmitter is a little beyond radio horizon.

    4. A.
    True
    B.
    False

    View Answer

    Workspace

    Discuss Discuss in Forum

  4. If carrier power is P and amplitude modulation index is m, the total power after modulation is

    5. A.
    P
    B.
    mP
    C.
    P(1 + m)
    D.

    View Answer

    Workspace

    Discuss Discuss in Forum

  5. Bit is a unit of

    6. A.
    entropy
    B.
    information
    C.
    channel capacity
    D.
    rate of information

    View Answer

    Workspace

    Discuss Discuss in Forum

  6. The modulation index of an AM wave is changed from 0 to 1. The transmitted power is

    7. A.
    unchanged
    B.
    halved
    C.
    increased by 50%
    D.
    quadrupled

    View Answer

    Workspace

    Discuss Discuss in Forum

  7. In a radio receiver the input from local oscillator is fed to

    8. A.
    RF amplifier
    B.
    mixer
    C.
    IF amplifier
    D.
    detector

    View Answer

    Workspace

    Discuss Discuss in Forum

  8. A shadow zone does not receive any space wave

    9. A.
    True
    B.
    False

    View Answer

    Workspace

    Discuss Discuss in Forum

  9. A radio frequency signal contains the following three frequencies :
    850 kHz; 865 kHz and 875 kHz
    In order to amplify this signal, which of the following amplifier should be selected?

    10. A.
    Push pull amplifier
    B.
    Wideband amplifier
    C.
    Audio frequency amplifier
    D.
    Tuned voltage amplifier

    View Answer

    Workspace

    Discuss Discuss in Forum

  10. Which of the following pulse-time modulation is least used?

    11. A.
    PDM
    B.
    PPM
    C.
    PWM
    D.
    PAM

    View Answer

    Workspace

    Discuss Discuss in Forum
