The ratio of the percentagge error in the discharge and percentage error in the measurement of head over a triangular notch, is

2/3

3/2

2/5

5/2

Whatsapp
Facebook
Copy
Copy Text
Copy
Copy URL

The ratio of the inertia and gravitational force acting in any flow, ignoring other forces, is called

Euler number

Frode number

Reynold number

Weber number.

Whatsapp
Facebook
Copy
Copy Text
Copy
Copy URL

A rectangular channel 6 m wide and 3 m deep and having a bed slope as 1 in 2000 is running full. If Chezy's constant C = 54.8, pick up the correct specification of the channel from the following :

hydraulic mean depth = 1.5 m

Velocity of flow = 1.5 m/sec

Rate of flow = 27 m³/sec

All the above.

Whatsapp
Facebook
Copy
Copy Text
Copy
Copy URL

Non-over flow double curvature concrete arch, is provided in

Bhakra dam

Hirakund dam

Nagarjuna Sagar dam

Idukki dam.

Whatsapp
Facebook
Copy
Copy Text
Copy
Copy URL

For the most economical trapezoidal open channel,

half of the top width must be equal to one of the sloping sides

the hydraulic mean depth must be equal to half the depth of flow

the semicircle drawn with top width as diameter must touch the three sides of the channel

All of these.

Whatsapp
Facebook
Copy
Copy Text
Copy
Copy URL

Hydraulic ram is a device

for lifting water without an electric motor

for accelerating water flow

for lifting heavy loads

none of these.

Whatsapp
Facebook
Copy
Copy Text
Copy
Copy URL

Gauge pressure is

absolute pressure - atmospheric pressure

absolute pressure + atmospheric pressure

atmospheric pressure - absolute pressure

none of these.

Whatsapp
Facebook
Copy
Copy Text
Copy
Copy URL

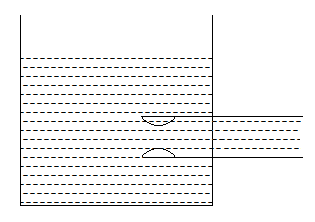

The mouth piece shown in the below figure is generally known as

Internal mouth piece

Re-entrant mouth piece

Borda's mouth piece

All the above.

Whatsapp
Facebook
Copy
Copy Text
Copy
Copy URL

If S is the length of the crest, H is the height of water source of a weir whose length is L and discharge is Q m³/sec, the velocity of approach V_d is

\(\sqrt{2gH}\)

\(\frac { Q } { L(H-L) } \)

\(\frac { Q } { L(H+S) } \)

\(\frac { L(H+S )} { Q } \)

none of these.
