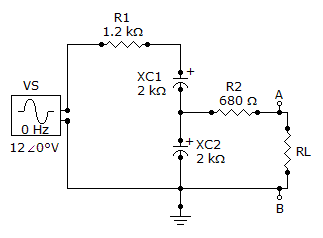

For the circuit given, determine the Thevenin voltage as seen by R_L.

0.574

16.7° V

5.74

16.7° V

0.574

–16.7° V

5.74

–16.7° V

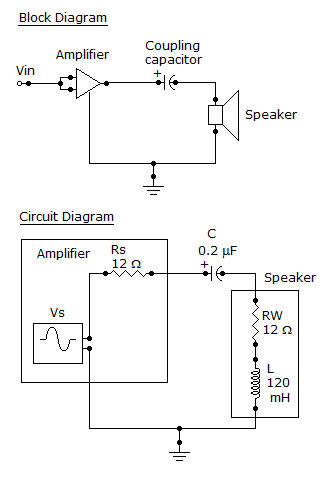

Determine the frequency at which the maximum power is transferred from the amplifier to the speaker in the given figure.

1,027 Hz

10,270 Hz

6,330 Hz

63,330 Hz

Norton's theorem gives

an equivalent current source in parallel with an equivalent impedance

an equivalent current source in series with an equivalent impedance

an equivalent voltage source in parallel with an equivalent impedance

an equivalent voltage source in series with an equivalent impedance
